Product Description

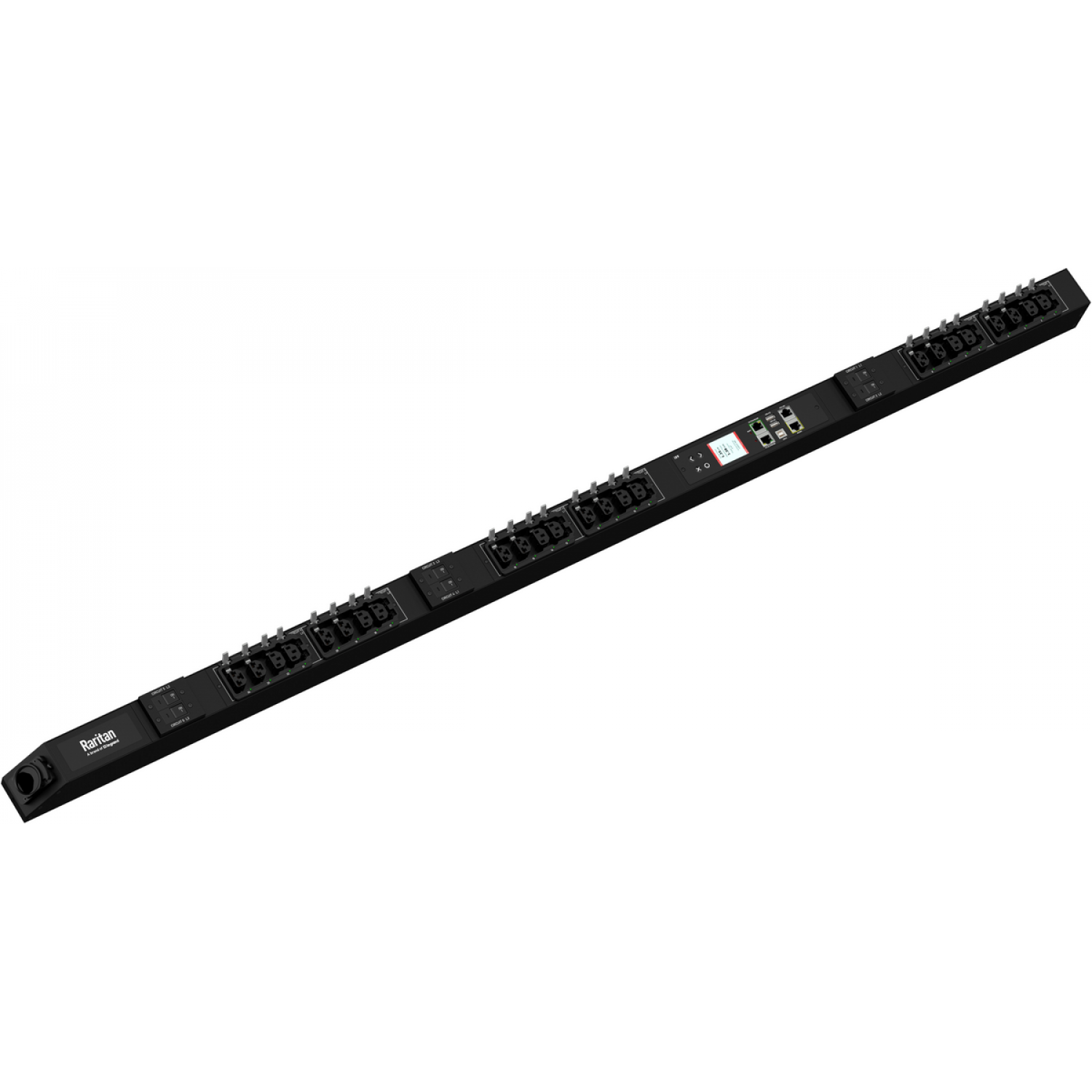

The Raritan PX4-5917-E7V2 is an advanced, vertically mounted intelligent 3-phase PDU (415 V/32 A, Wye) designed for professional data centre environments. It provides 24 IEC outlets (12 x C13 and 12 x combined C13/C19), each supporting individual metering and switching. The PDU delivers billing-grade measurement accuracy (±0.5%), comprehensive power quality analytics including THD, PF, voltage dips and swells, inrush current and more, and a range of advanced security and monitoring features powered by the high-performance iX12 hot-swappable controller. Broad support for remote management protocols, including HTTP(S), SNMPv3, Redfish API, MODBUS/TCP, JSON-RPC and SSH, combined with dual Gigabit Ethernet, optional Wi-Fi, mobile app control and daisy-chaining of up to 32 PDUs, makes this model well suited to scalable, high-density installations. Three-phase power supply, 230 V Power capacity up to 23 kVA (at 415 V) 24 locking IEC outlets (12 x C13, 12 x Cx) Network: HTTP/S, SSH, SNMPv3, JSON-RPC, Redfish API, MODBUS/TCP Daisy-chaining: Up to 32 PDUs via Ethernet or up to 16 PDUs via USB Hot-swappable controller Height: 1539 mm Width: 56 mm Depth: 65 mm For international use outside North America.
