Product Description

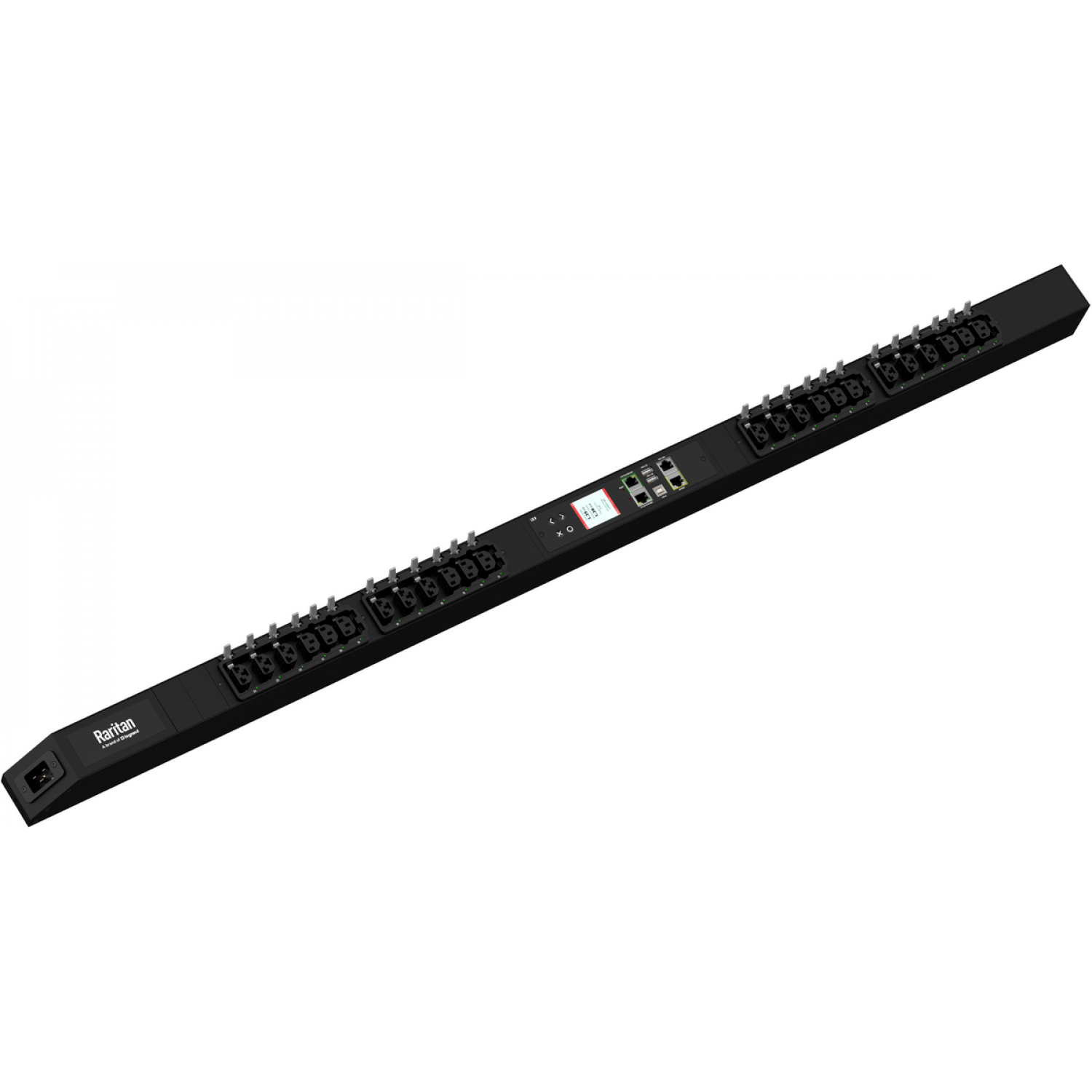

The Raritan PX4-53A8C-C8E7A0 is an intelligent, vertically mounted power distribution unit (PDU) for data centre environments, with a 1-phase 100-240 V input and a power capacity of up to 3.8 kVA. It provides 24 outlets (12 x C13 and 12 x combined C13/C19) and supports individual metering and switching per outlet, as well as billing-grade energy and power quality measurement (±0.5%). With remote management via HTTP(S), SNMPv3 and Redfish API, mobile app control for iOS and Android, Wi-Fi capability, and a hot-swappable controller, it is well suited to high-availability environments. Daisy-chaining of up to 32 PDUs, environmental monitoring support with up to 32 sensor functions, ISO 27001 compliant and IPv6 Ready. Single-phase power supply, 100-240 V Power capacity up to 3.8 kVA (at 240 V) 24 IEC outlets: 12 x C13 (10 A), 12 x Cx (16 A) Energy metering: Class 0.5, measurement per input line Network: HTTPS, SSH, Telnet, SNMPv3, JSON-RPC, MODBUS-TCP, Redfish, RS-232 Daisy-chaining: Up to 32 PDUs via Ethernet or up to 16 PDUs via USB Hot-swappable controller Height: 1298 mm Width: 56 mm Depth: 65 mm For international use
