Product Description

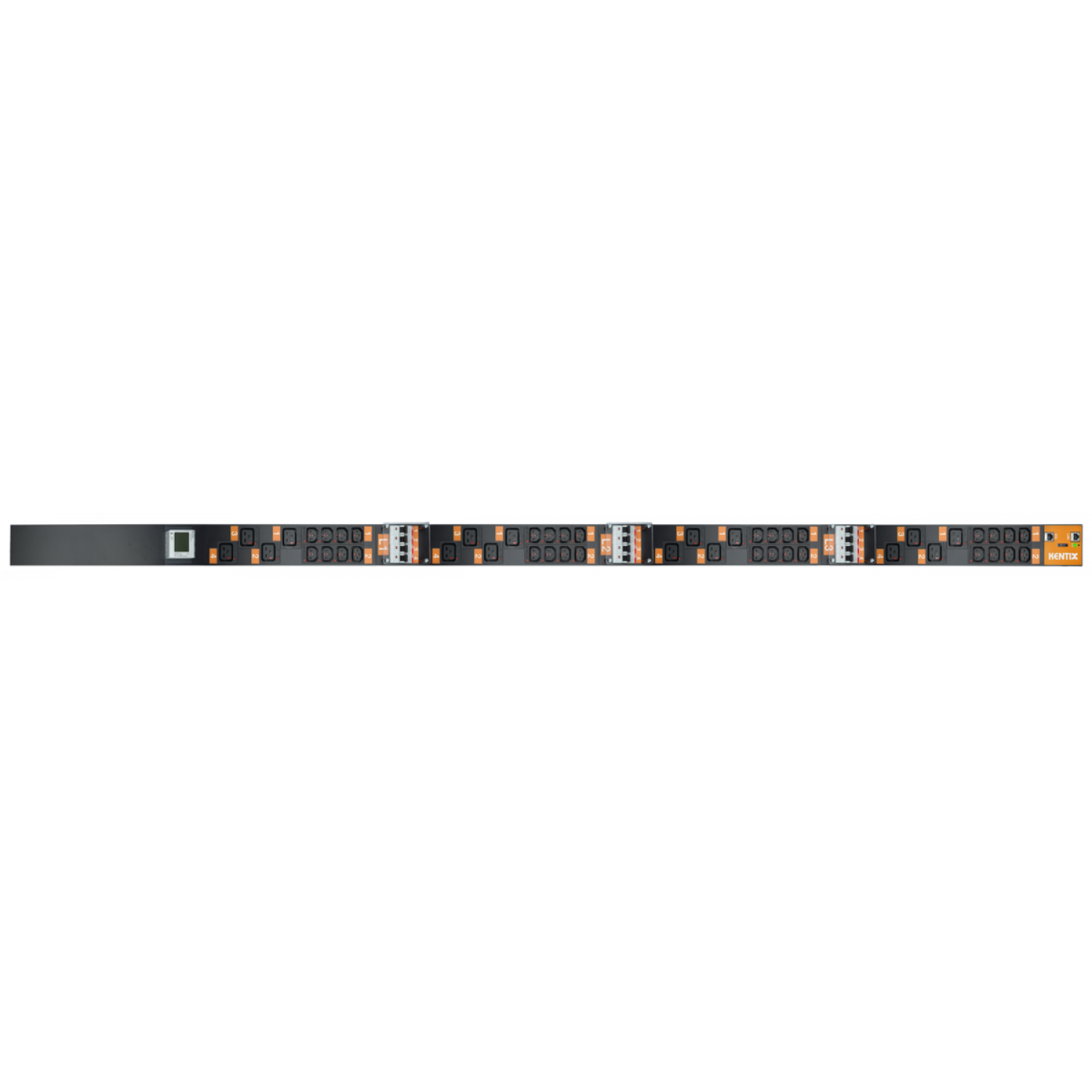

Kentix SmartPDU 40 U with 24/C13-12/C19 (IEC60320), 3-phase 63 A SmartPDU as a system solution combines integrated Kentix MultiSensor technology with 40 rack units, RCM, and certified power metering. Thanks to the built-in KentixONE software, the SmartPDU can be centrally managed with ease. Its electronics are powered via PoE, ensuring that both sensor functionality and PDU management remain operational during a power outage, supported by a UPS-buffered PoE switch. Additional digital inputs and outputs are available via the Kentix system port, including the option to directly connect electronic RFID rack handles. - Multiple socket configurations available - Lockable IEC appliance outlets (IEC60320, IEC-Lock) - Monitored fuses (10/16 A per group, Type C) - IEC60309 plug (16-32 A CEE, depending on model) - 3 m H05VV-F cable (up to 6 mm², depending on model) - Certified MID-compliant metering with three measurement ranges - AC/DC residual current monitoring (RCM) - Optional surge protection (Type 3) - Climate monitoring: temperature, humidity, dew point - Two-factor fire detection: ΔT/Tmax and VOC sensors - Vibration detection via G-sensor - 100 Mb Ethernet with PoE (Class 0) - Frequency range: 45-54 Hz (±0.01 Hz) - Temperature range: 0 to 50 °C - Power supply: 230 VAC or 3 x 230/400 VAC (depending on model) - Power rating: 7.3-44 kVA (depending on model) - Power consumption: approx. 5 W - Size (L x W x H): 1770 x 78.1 x 62.5 mm IP20-rated protection
